Dry Liner Duoplex Steel

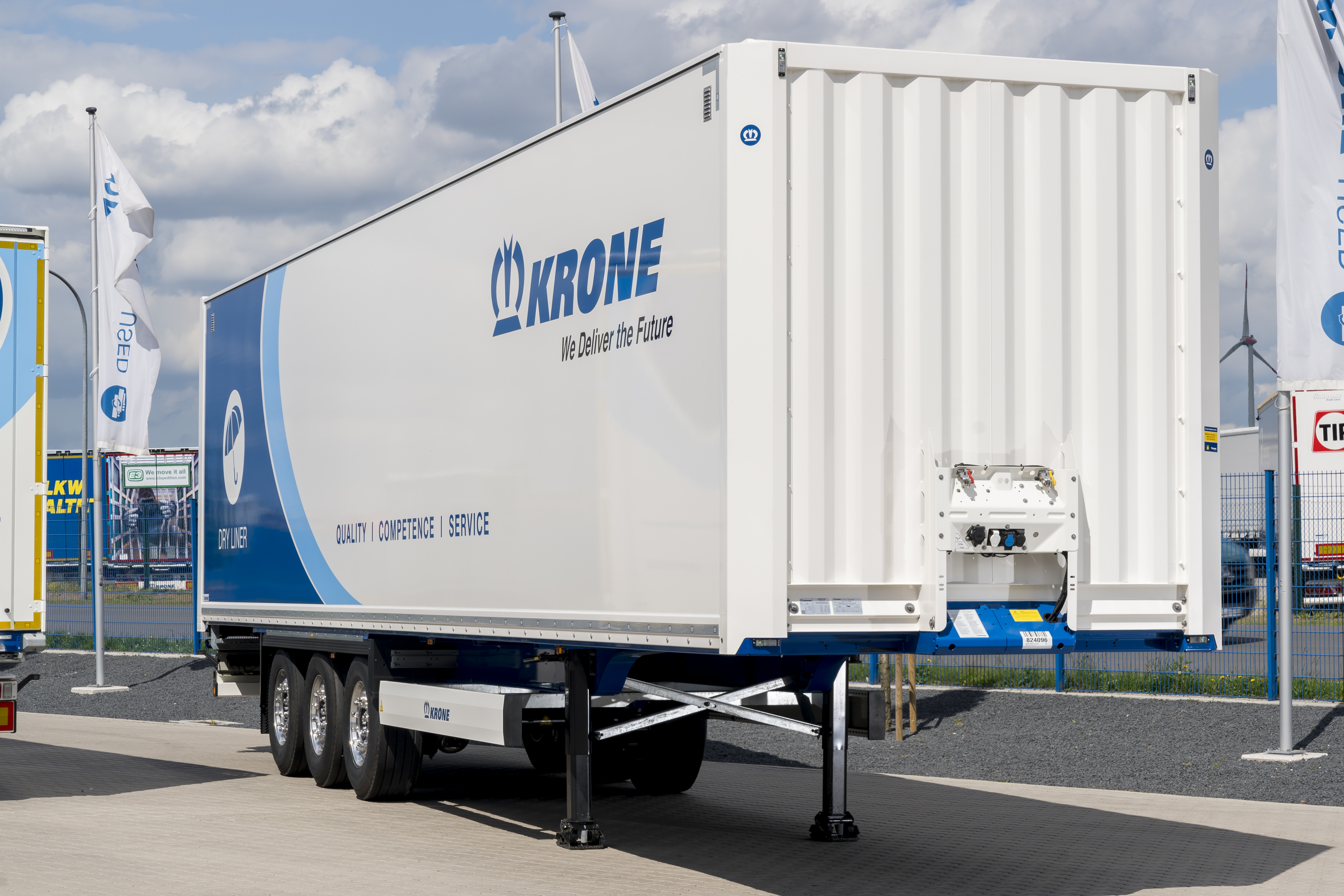

Closed box semi-trailer with steel and foam sandwich walls.

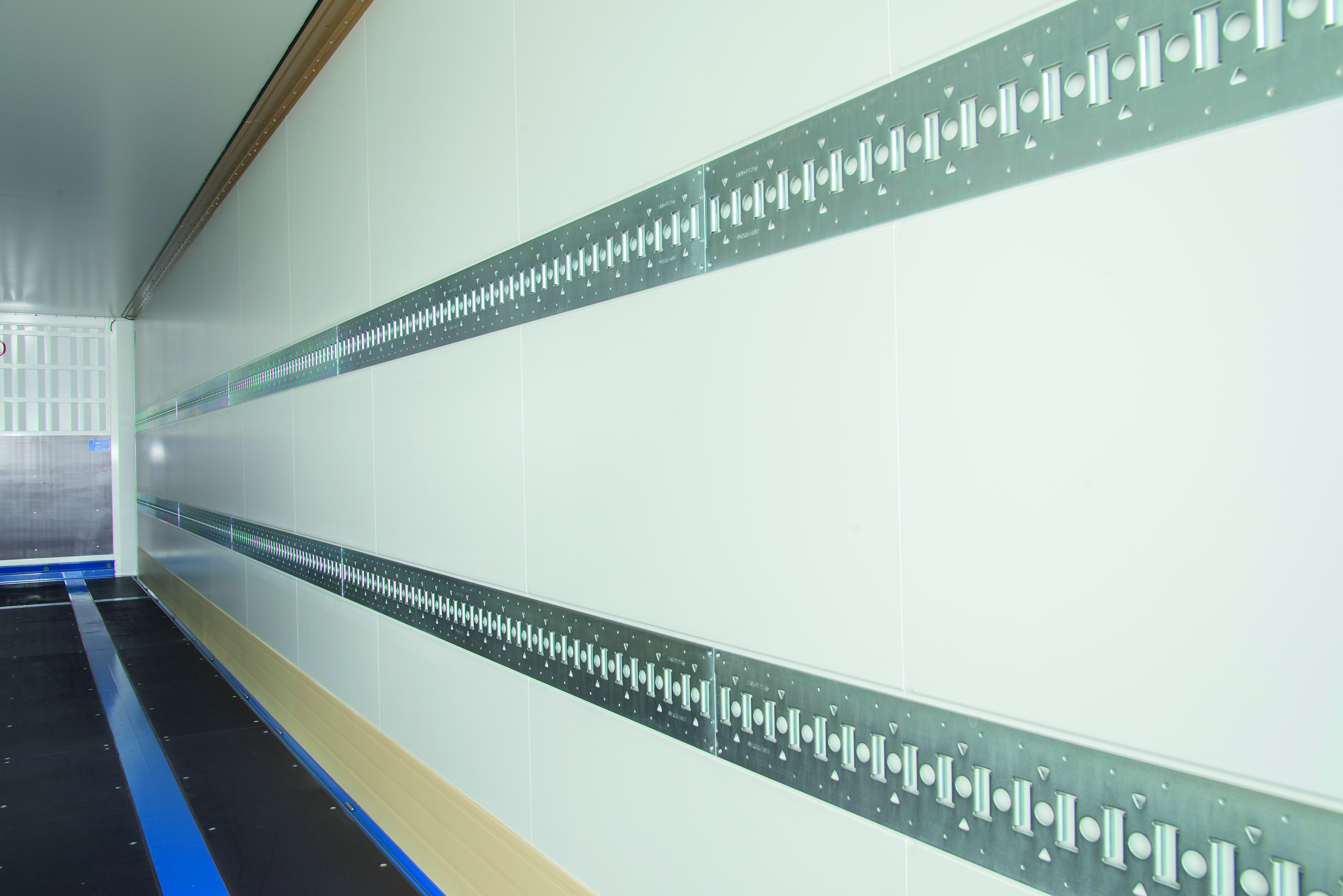

A robust semi-trailer with steel and foam sandwich walls, designed for transporting high-value goods. Configurable with standard or Mega coupling height, equipped with interior securing rails, translucent roof, and options for load anchoring accessories. Optional plywood side walls and the double-floor system make this model flexible and ideal for sensitive or fresh products.
Key advantages
30 mm double floor system and sandwich walls, ideal for transporting fresh products
Options for load securing and anchoring accessories
Robust construction with optimized front wall and rear door frame for stability
Option to add additional security systems
Technical data
Kingpin load: 12,000 kg
Axle load: 27,000 kg
Permissible total weight: 39,000 kg
Unladen weight: approx. 8,200 kg
Payload capacity (technically possible): approx. 30,800 kg
Axle spacing: 1,310 / 1,310 mm
Duoplex Steel side panel thickness: 30 mm
Internal length: 13,310 mm
Internal width: 2,460 mm
Internal height: 2,630 mm
